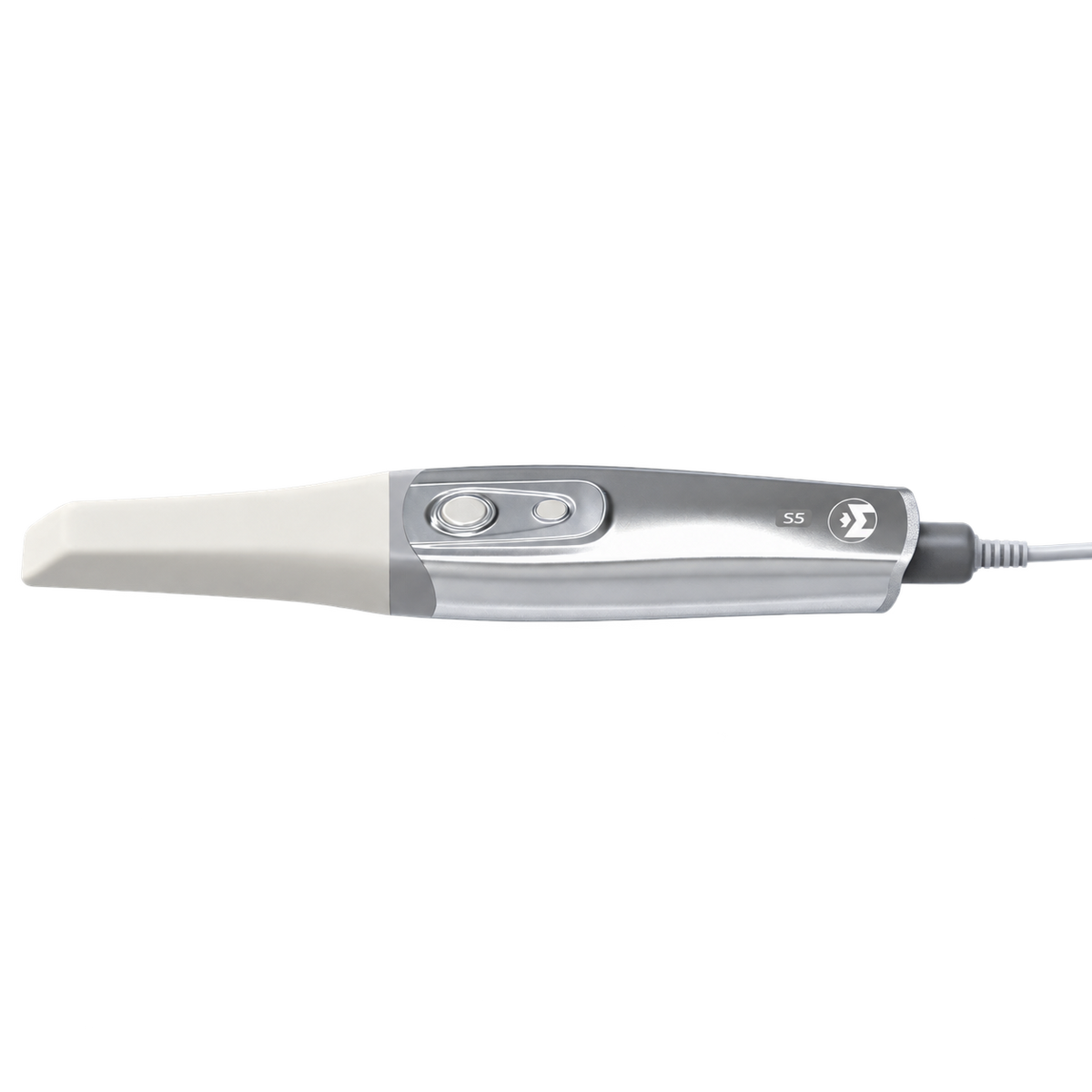

S5 Intra Oral Scanner
The S5 scanner was developed for fast and precise digital scans in modern dental workflows. With a handpiece weighing only 160 g, a depth of field of up to 25 mm, and a full-arch accuracy of <20 µm, it enables comf...
Über S5 Intra Oral Scanner
The S5 scanner was developed for fast and precise digital scans in modern dental workflows. With a handpiece weighing only 160 g, a depth of field of up to 25 mm, and a full-arch accuracy of <20 µm, it enables comfortable and efficient work. Intelligent algorithms allow a complete scan including occlusion in just 60 seconds.
1. Precise & Fast Scanning
- Full Arch + Occlusion in approx. 60 seconds
- Single Arch in approx. 25 seconds
- Accuracy: <10 µm Single Tooth / <20 µm Full Arch
- Depth of field: 0–25 mm
2. Scanner Tips
- Standard Tip with 16 × 14 mm scan area
- Mini Tip with 12 × 10 mm scan area
- Up to 100 sterilization cycles
- 3 Standard Tips + 1 Mini Tip included
3. Comfortable Operation
- Handpiece weighing only 160 g
- Motion-sensing control for interactive 3D visualization
- Fast switching between upper and lower jaw
- Additional scan button for easier operation
4. Efficient Digital Workflow
- Calibration-free operation
- Direct connection via USB 3.0
- Fan Anti-Fog Technology
- Integrated UVC Sterilization LED
- Output formats: STL, PLY (True Color), OBJ
Powerful Software
The S5 supports orthodontic simulations, Scan Body Smart Matching for implant scans, metal scanning, Case Cloud Sharing, Oral Health Reports, Impression Scanning, and High-Resolution Refinement, among other features.
