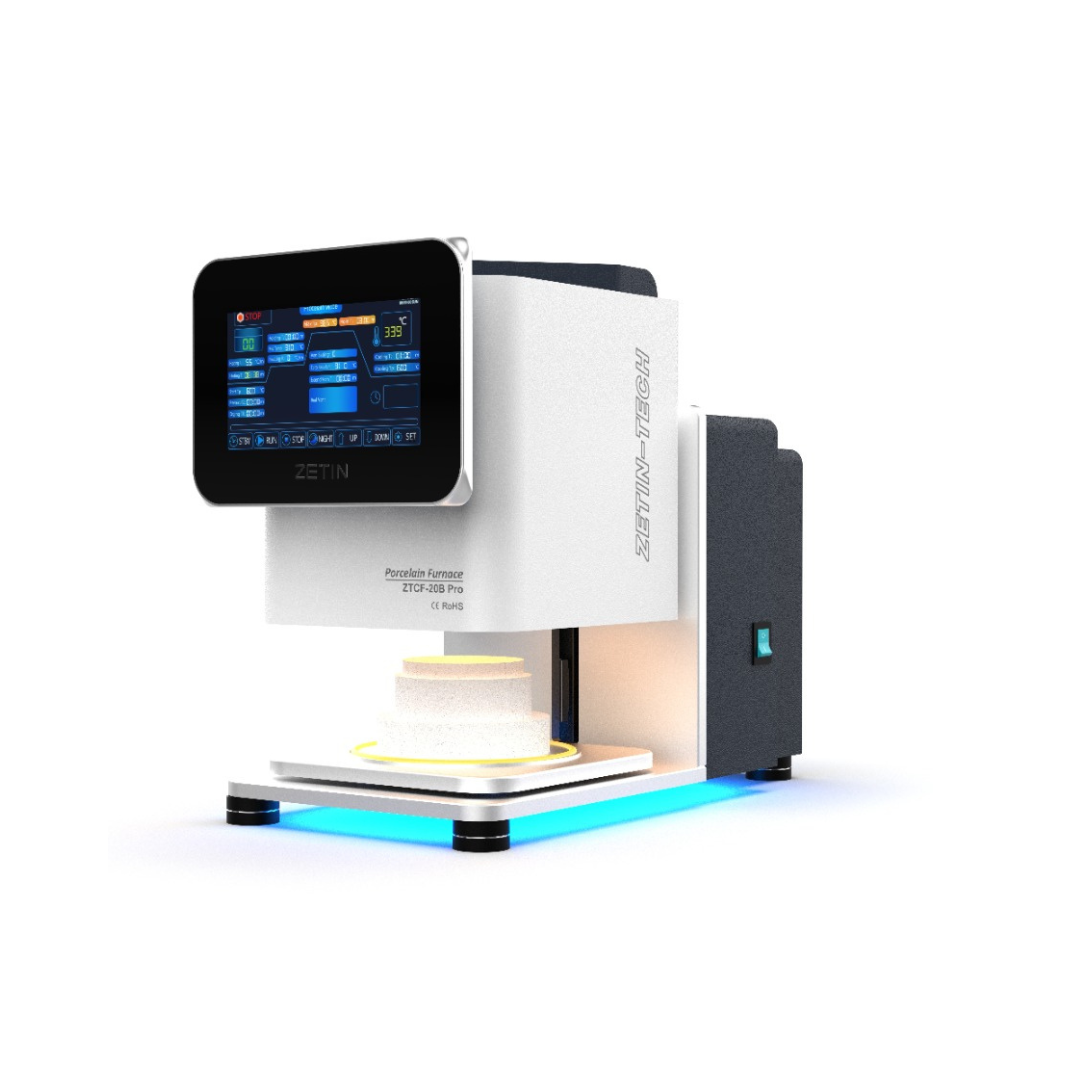

The ZTCF-20B Pro Chairside Porcelain Furnace is a high-performance dental furnace equipped with an integrated vacuum pump for precise porcelain and glass ceramic processing. Designed for efficiency and accuracy, it delivers uniform heating and reliable results in both dental labs and chairside environments.

With advanced PID temperature control, multi-stage heating capability, and a user-friendly touch interface, this furnace ensures optimal performance for modern dental applications.

Technical Specifications

• Maximum Temperature: 1300°C
• Maximum Vacuum: -98 kPa
• Heating Rate: ≤ 140°C/min
• Temperature Accuracy: ±1°C
• Power: 1600W
• Voltage: 220V / 50–60Hz
• Chamber Size: Ø100 × 70 mm
• Machine Size: 460 × 220 × 300 mm (L × W × H)
• Program Capacity: 100 programs (expandable up to 500)
• Net Weight: 18 kg

Key Features

• Chamber lifting system for stable operation and uniform heating
• Multi-stage heating design suitable for sintering glass ceramics
• Imported heating wire for consistent performance and long lifespan
• Pre-installed programs (Yihuojie, Weita, Wuci powders) for easy selection
• Advanced PID temperature control with ±1°C accuracy
• High-precision vacuum measurement with imported sensors
• Oil-free vacuum pump with long service life, high vacuum level, and low noise
• Large touch screen with parameterized interface and full display
• Vacuum pipeline filtration system for extended component lifespan
• Energy-efficient insulation materials for stable furnace temperature
