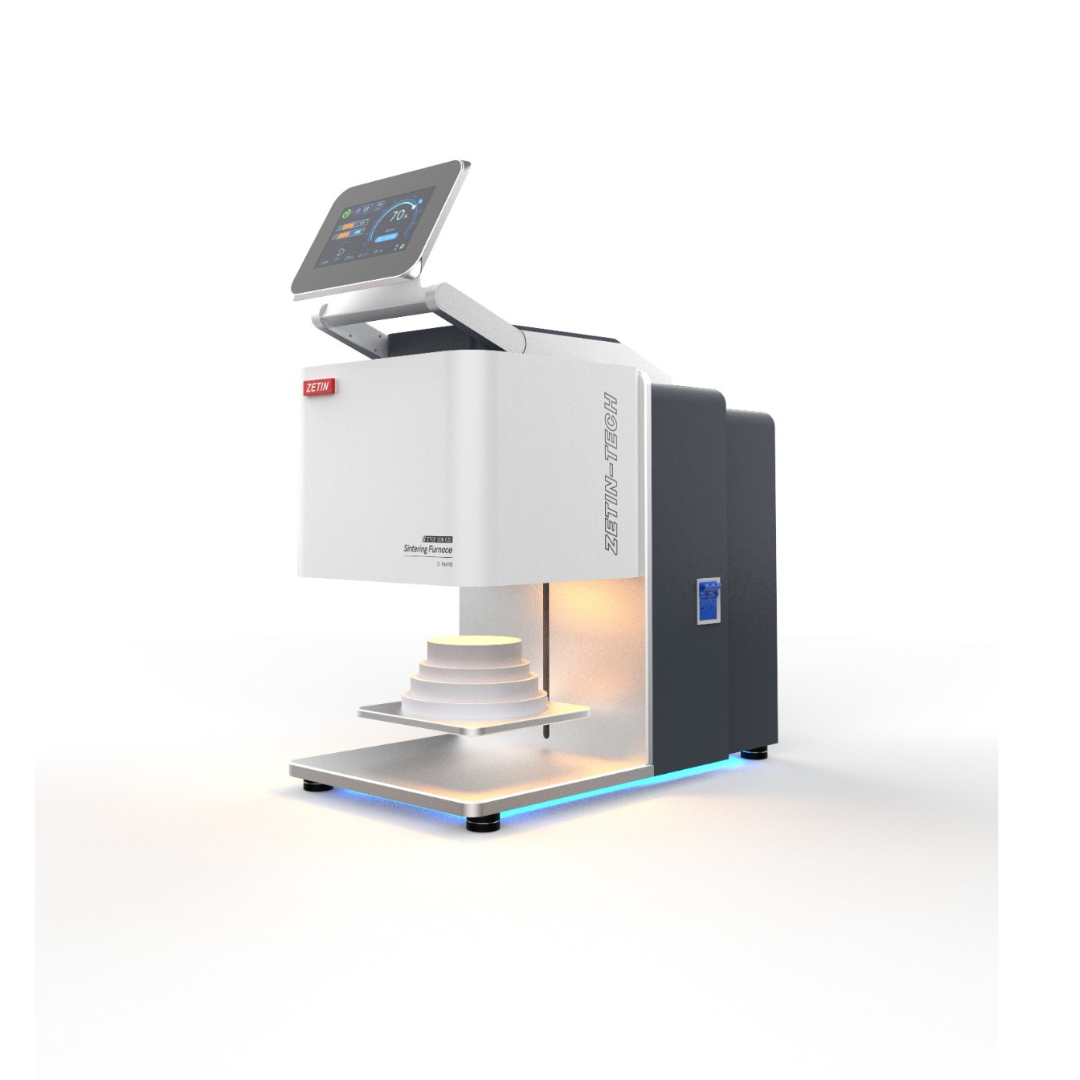

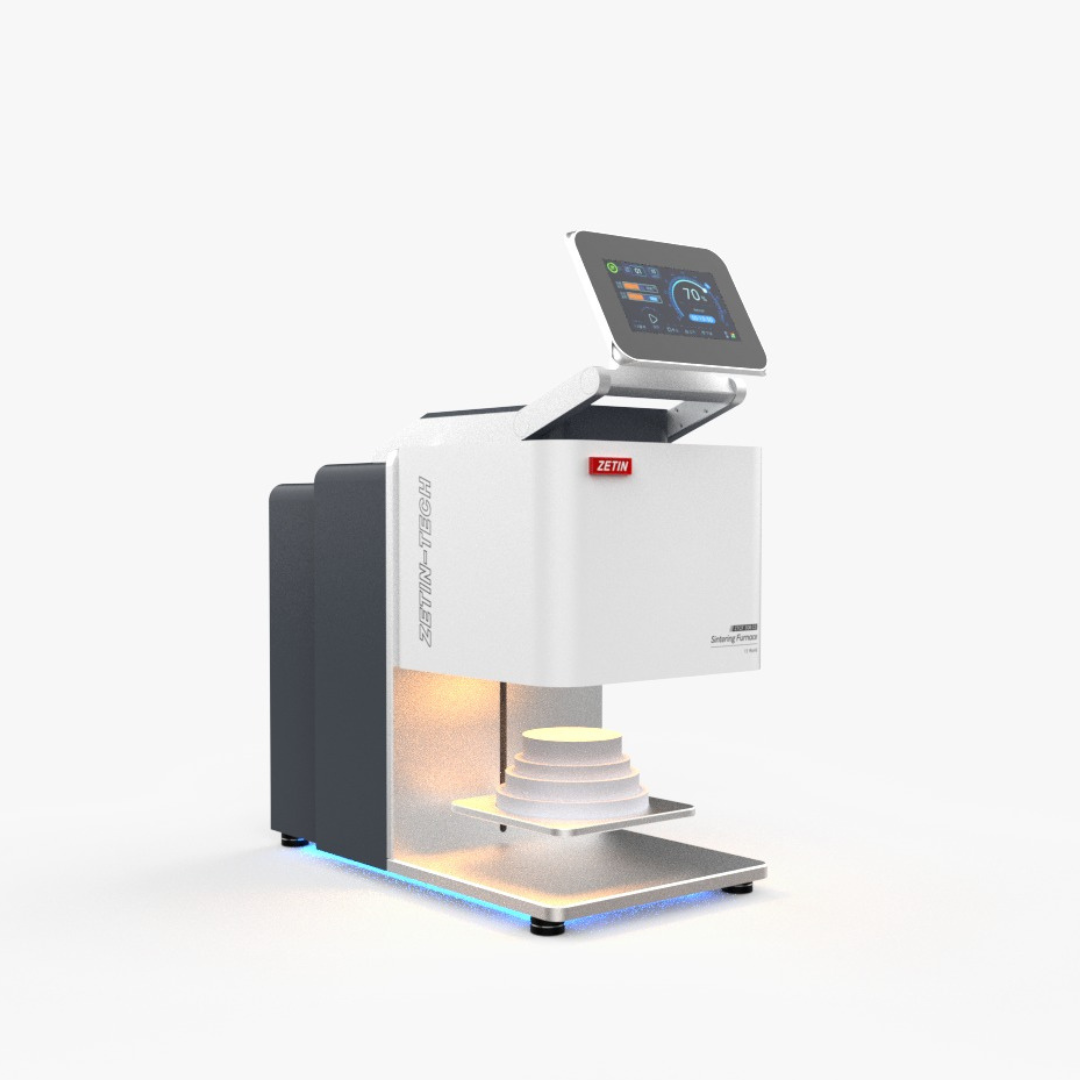

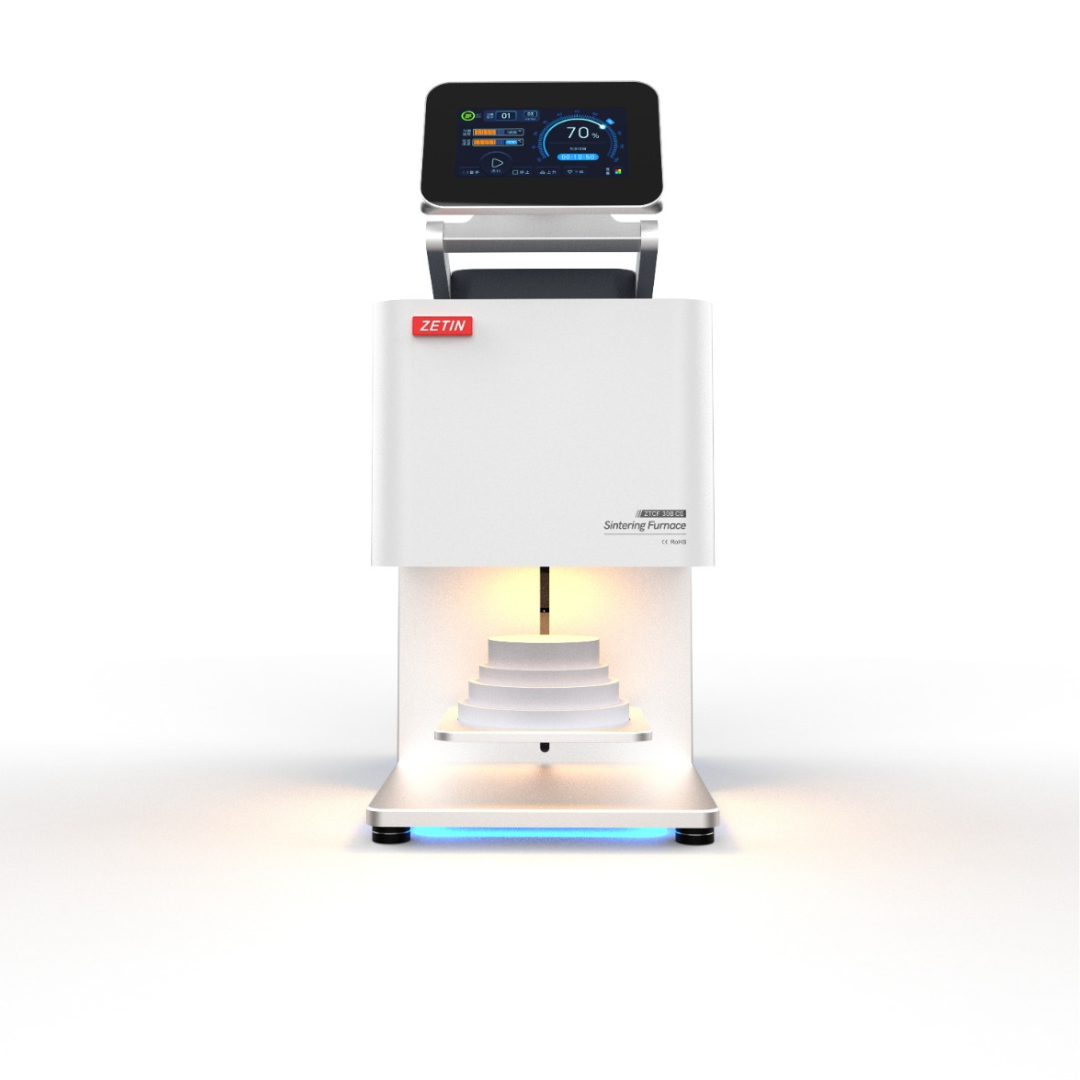

The ZTCF-30B CS Chairside Fast Zirconia Sintering Furnace is a high-speed, high-performance solution designed for rapid zirconia sintering in dental applications. Engineered for efficiency and precision, it allows single crowns to be sintered in as little as 1 hour, making it ideal for chairside workflows and time-sensitive cases.

With advanced heating technology, precise temperature control, and an intuitive touchscreen interface, this furnace ensures consistent results, excellent strength, and accurate coloration for zirconia restorations.

Technical Specifications

• Fast Sintering Time: Single crown: 1 hour; bridge/complex parts: up to 2.5 hours
• Sintering Capacity: Up to 60 units
• Maximum Temperature: 1750°C
• Temperature Accuracy: ±1°C
• Heating Element: High-performance composite heating element
• Touch Screen: 7" TFT display
• Power: 2 kW
• Voltage: 220V / 50–60Hz
• Cleaning Program: 40 programs
• Program Capacity: 40 programs with power-off memory function
• Machine Size: 565 × 310 × 585 mm (L × W × H)
• Net Weight: 50 kg

Key Features

• Ultra-fast chairside sintering (full cycle in ~1 hour)
• High precision PID temperature control (±1°C accuracy)
• Preset program functionality for quick and easy operation
• High-performance heating elements for uniform temperature distribution
• Prevents incomplete sintering and ensures accurate zirconia coloration
• Large touchscreen with data visualization and simple controls
• Energy-efficient insulation for stable and consistent heating
• Power-off memory function resumes operation after interruption
